产品属性

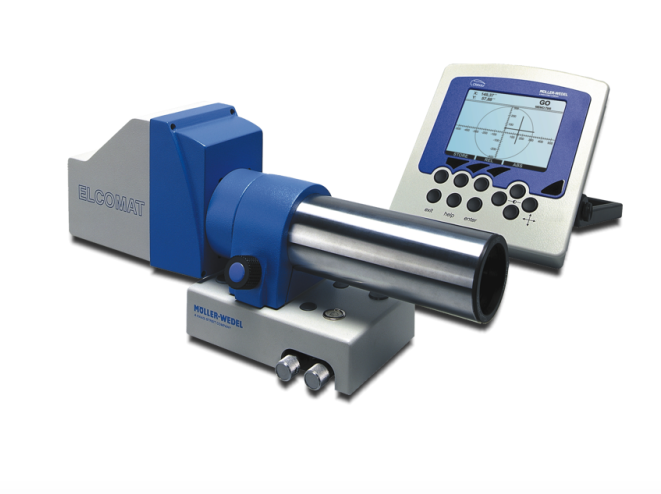

Elcomat 3000电子准直仪

Elcomat3000电子准直仪是一种通用的自准直传感器,测量范围大,精度高。它既可用于生产,也可用于实验室。

资华贸易有限公司
联系方式: +852-23808060
电话号码::18318333238(陈先生)
电话号码:13923829816(曾先生)
地址: 香港,九龙,弥敦道789号健锋保险大厦11楼04室
产品介绍

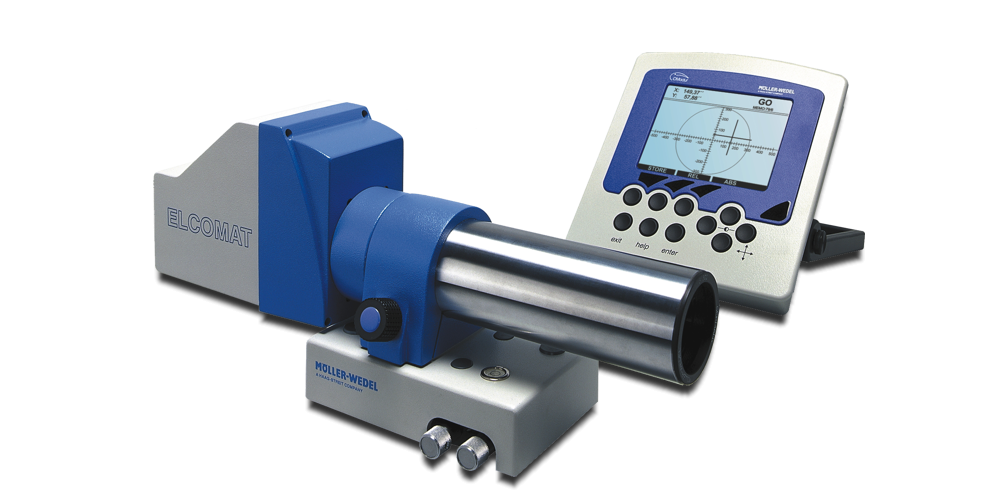

Elcomat3000电子准直仪

ELCOMAT 3000是一种通用的自准直传感器,测量范围大,精度高。它既可用于生产,也可用于实验室。





Art. No.

229 919

Accuracy (arcsec)

± 0.1 over any 20'' range
± 0.25 over total range

Number of measuring axes

2

Measuring range, (X) x (Y) ( arcsec)

2000 x 2000 up to 2.5 m
1770 x 1770 at 3 m
1320 x 1320 at 4 m
1030 x 1030 at 5 m
850 x 850 at 6 m
730 x 730 at 7 m
640 x 640 at 8 m
570 x 570 at 9 m
510 x 510 at 10 m
340 x 340 at 15 m
260 x 260 at 20 m

Acquisition (arcsec)

ca. 3600 both axes

Resolution (arcsec)

0.005 up to 10; selectable

Reproducibility (arcsec)

0.05

Focal length (mm)

300

LED Wavelength (nm)

660

Minimal reflector diameter(mm)

ø 5 (mirrored (R>85%)); ø 6 (uncoated (R=4%))

Free aperture (mm)

50

Height of optical axis (mm)

100 (in adjustable holder 223 056)
62 (in clamp fixture 223 037
)

Computer interface

RS-232 / USB

Mains voltage

90...250 V / 50...60 Hz

Dimensions (mm)
Autocollimation sensor

420 x 95 x 135

Dimensions (mm)
Display unit

208 x 230 x 48

Tube diameter (mm)

ø 65 f7

Weight (kg)
Autocollimation sensor

3.8

Weight (kg)
Display unit

1.2

Scope of delivery

Autocollimation sensor, display unitINCOLINK software interface, AC-adapter power supply, IR-remote control, RS-232 cable, USB-cable, transportation and storage box


Elcomat3000电子准直仪

ELCOMAT 3000是一种通用的自准直传感器,测量范围大,精度高。它既可用于生产,也可用于实验室。





Art. No.

229 919

Accuracy (arcsec)

± 0.1 over any 20'' range
± 0.25 over total range

Number of measuring axes

2

Measuring range, (X) x (Y) ( arcsec)

2000 x 2000 up to 2.5 m
1770 x 1770 at 3 m
1320 x 1320 at 4 m
1030 x 1030 at 5 m
850 x 850 at 6 m
730 x 730 at 7 m
640 x 640 at 8 m
570 x 570 at 9 m
510 x 510 at 10 m
340 x 340 at 15 m
260 x 260 at 20 m

Acquisition (arcsec)

ca. 3600 both axes

Resolution (arcsec)

0.005 up to 10; selectable

Reproducibility (arcsec)

0.05

Focal length (mm)

300

LED Wavelength (nm)

660

Minimal reflector diameter(mm)

ø 5 (mirrored (R>85%)); ø 6 (uncoated (R=4%))

Free aperture (mm)

50

Height of optical axis (mm)

100 (in adjustable holder 223 056)
62 (in clamp fixture 223 037
)

Computer interface

RS-232 / USB

Mains voltage

90...250 V / 50...60 Hz

Dimensions (mm)
Autocollimation sensor

420 x 95 x 135

Dimensions (mm)
Display unit

208 x 230 x 48

Tube diameter (mm)

ø 65 f7

Weight (kg)
Autocollimation sensor

3.8

Weight (kg)
Display unit

1.2

Scope of delivery

Autocollimation sensor, display unitINCOLINK software interface, AC-adapter power supply, IR-remote control, RS-232 cable, USB-cable, transportation and storage box
